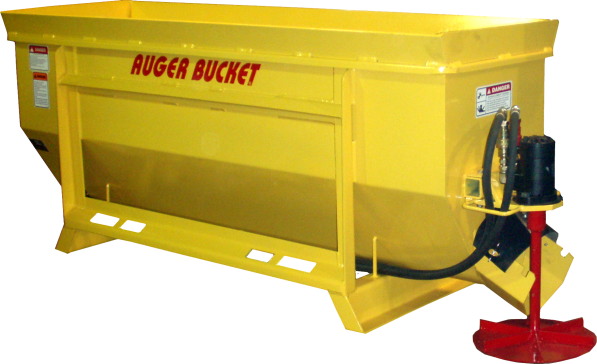

Auger Bucket™

Product

Description
  • Multi-purpose bucket with horizontal rubber flighted steel auger. A full steel auger is also available for dry mixtures such as dirt, sand, grain, feed, etc.
  • Self loading from loose piles. A weld-on cutting edge is also available.
  • 1/2 yard capacity (3/4 yard capacity capable with optional hopper extension).
  • Skid-steer quick-attach frame on front and back allows right or left hand discharge.
  • Accurate and controlled discharge: 1/2 yard/ 50 secs.
  • Horizontal steel auger with orbital motor drive.
  • Excellent operator visibility (one person operation).
  • Two multi-link chutes included (1 - 24" & 1 - 36"). Additional cutes can be ordered as needed.
  • Includes 84" hoses & 1/2" flat face couplers.
  • Mix concrete right in the bucket.
  • Replaceable protective rubber flighting: prevents binding of coarse material.
  • Handles most materials: 1 slump concrete, sand, asphalt, washed gravel 3/4" max., ag. grains etc.
Available Mounts:
  • Skid-Steer or CTL
Manufacturer:
Product Categories:
Model & Keywords:
3110 3120 3210 3220 3130 3230 2110 2120 2210 2220
sand gravel wood chips feed grain sawdust bagging agricultural pump
cement mixer mix mixing concrete
Specifications
Specifications:
Specifications3000 Series
Length73.5”
Width22.5”
Height29.5”
Weight400-430 lbs.
Volume13 cu. ft. (1/2 cu. yd.)
Volume (With Hopper Extension)20 cu. ft. (3/4 cu. yd.)
Min. Hyd. Requirements12 GPM
Auger Length61.5”
Steel Auger Diameter (AS001)5.75"
Rubber Auger Diameter (AD001 or AM002)8.0"
Flighting Spacing4.0"
AugerRubber (AD001/AM002)Steel (AS001)
AsphaltNot RecommendedGood
ConcreteGoodPoor
Feed / GrainPoorGood
SandPoorGood
Dry SoilNot RecommendedGood
Washed Gravel - 3/4" or LessPoorGood
Video
Downloads
Options
The standard rubber flighted auger. Handles most wet material.
Discharge Auger (AD001)
The standard rubber flighted auger. Handles most wet material.
Paddles and more rigid rubber flighting allow for concrete to be mixed directly in the bucket.
Mixing Auger (AM002)
Paddles and more rigid rubber flighting allow for concrete to be mixed directly in the bucket.
Used for discharging asphalt and most dry mixtures or materials.
Steel Auger (AS001)
Used for discharging asphalt and most dry mixtures or materials.
For loading from frozen/hard piles. Factory installation only.
Weld-On Cutting Edge
For loading from frozen/hard piles. Factory installation only.
Increases the capacity of the auger bucket from 1/2 yard to 3/4 yard. Bolt-on.
3/4 Yard Hopper Extension (87134)
Increases the capacity of the auger bucket from 1/2 yard to 3/4 yard. Bolt-on.
